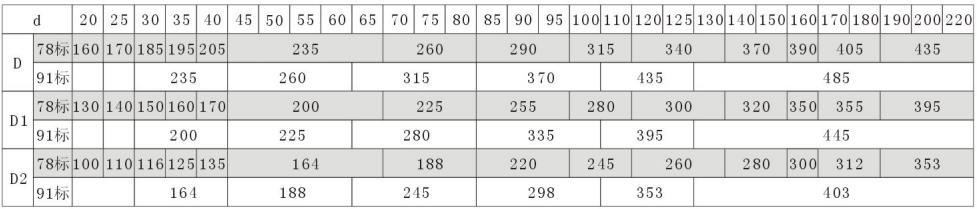

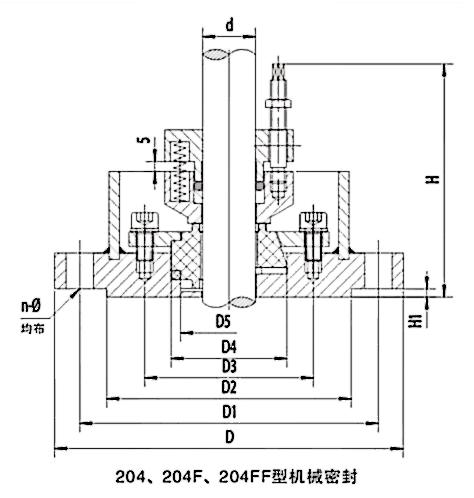

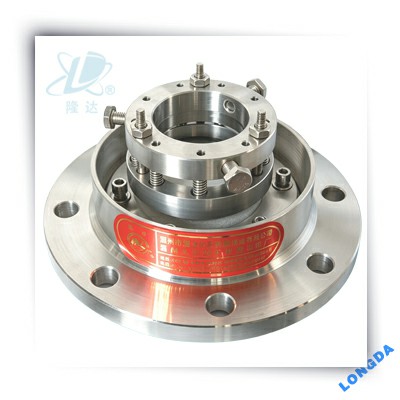

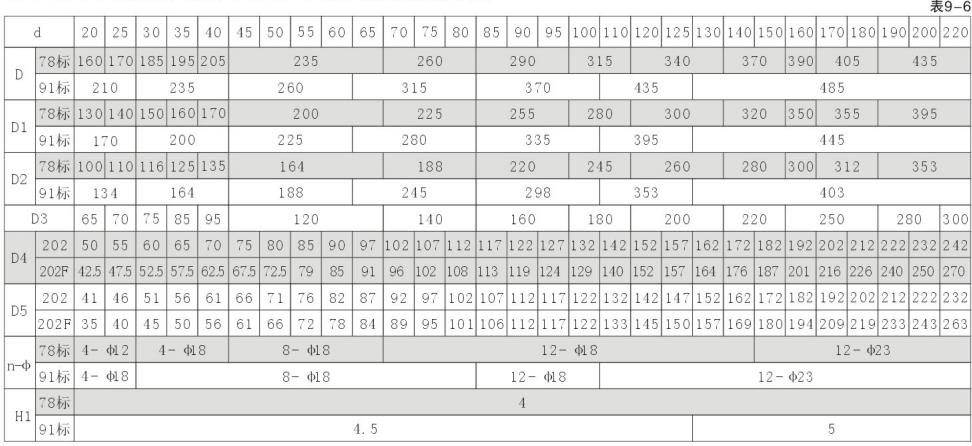

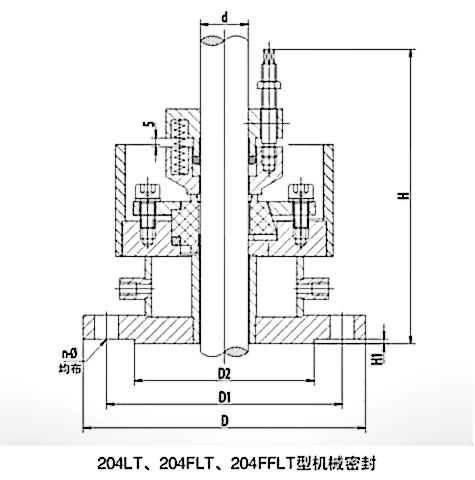

204型釜用机械密封

产品介绍

★ Medium: Various weakly corrosive gases, corrosive liquids such as strong acids and strong alkalis, flammable and explosive gases

★ Temperature: 0℃ ~ 120℃ (Cooling measures shall be taken if the temperature exceeds 80℃)

★ Pressure: ≤0.6 MPa

★ Rotational Speed: ≤500 r/min

★ Standards: HG5-754-78 / HG2098-91

★ Structural Type: Single-face small-spring balanced type

★ Simple structure, suitable for general sealing requirements. Light lubricating oil shall be filled into the lubricating box during operation.

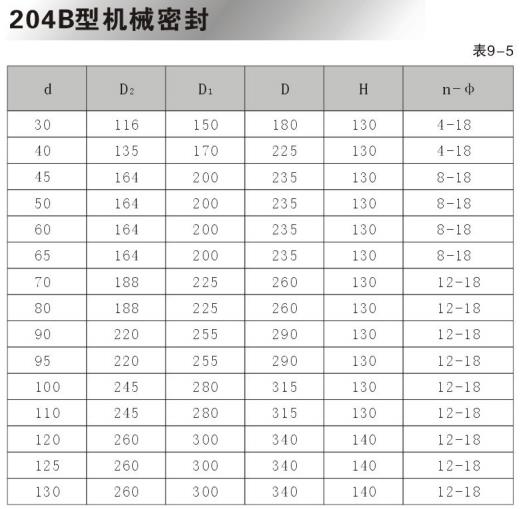

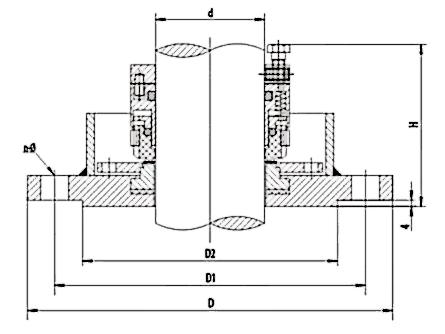

Model 204B Mechanical Seal

Technical Parameters

★ Medium: Acids, alkalis, oils and polymer suspensions

★ Temperature: ≤100℃

★ Pressure: -0.1 ~ 0.6 MPa

★ Linear Velocity: ≤2 m/s

Technical Parameters

★ Medium Temperature: ≤80℃

★ Medium Pressure: ≤0.6 MPa

★ Linear Velocity: ≤1.5 m/s

★ Medium: Various weakly corrosive media

Technical Parameters

★ Medium Temperature: ≤200℃

★ Medium Pressure: ≤0.6 MPa

★ Linear Velocity: ≤1.5 m/s

★ Medium: Various weakly corrosive media

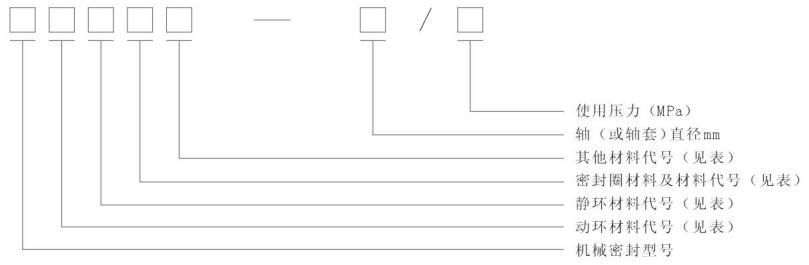

Marking Instructions for Reactor Mechanical Seals

釜用机械密封标记说明|搅拌器|减速机|挡板门|机械密封-江苏隆达机械设备有限公司https://www.longdaml.com/

Marking Example

Double-ended multi-spring balanced mechanical seal for reactors with bonded oxide ceramic rotating ring, phenolic resin impregnated graphite stationary ring, stainless steel for other medium-contacting parts, fluororubber sealing ring, shaft diameter of 80 mm and working pressure of 1 MPa is marked as: 206LzMqS13-80/1(MPa).

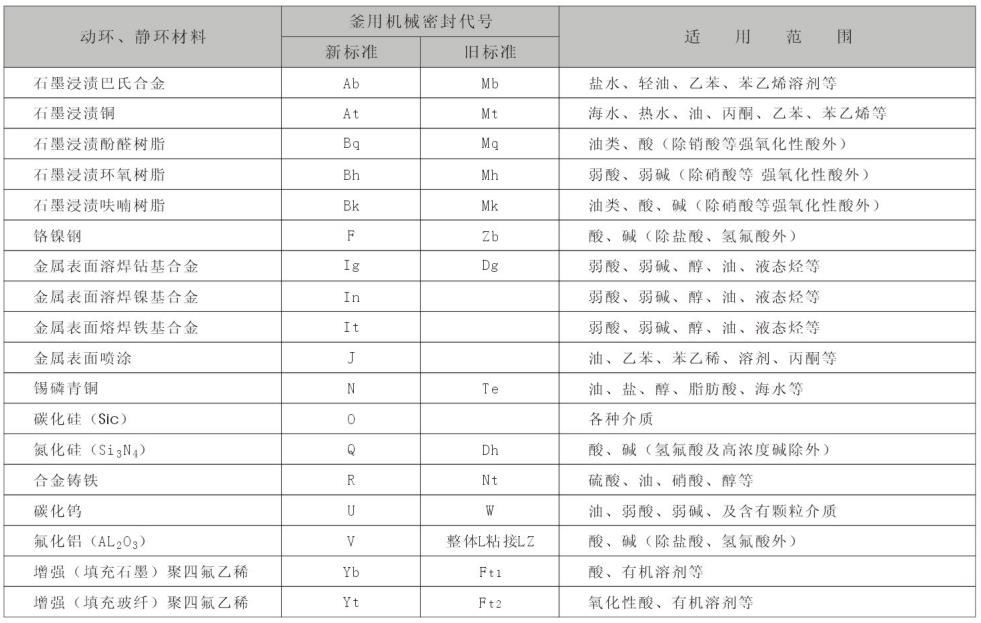

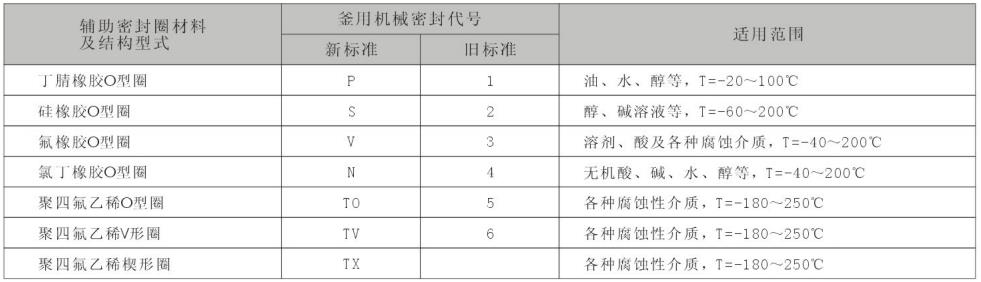

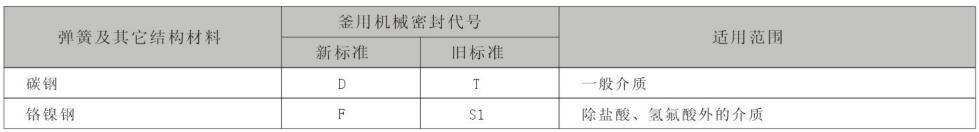

釜用机械密封材料及代号：
